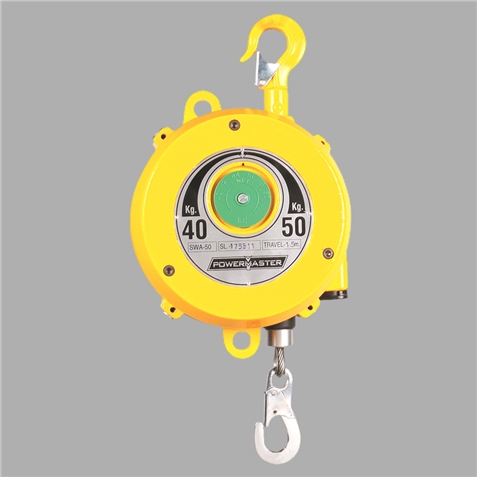

SWA Series

Spring Balancer with Wire Arrest Mechanism

These balancers are provisioned with wire arrest mechanism, which locks the drum pulley in case of tool disengagement. These balancers are available for capacity from 9 - 70 Kg. & have all the feature of SWF balancers as well.

These balancers are primarily used with welding guns and applications where chances of wire slitting or tool disengagement due to accidental failure are higher.

Capacity 19.8 lbs to 154.3 lbs 9.0 kg to 70.0 kg
Travel 4.27 ft to 7.55 ft 1.3 m to 2.3 m

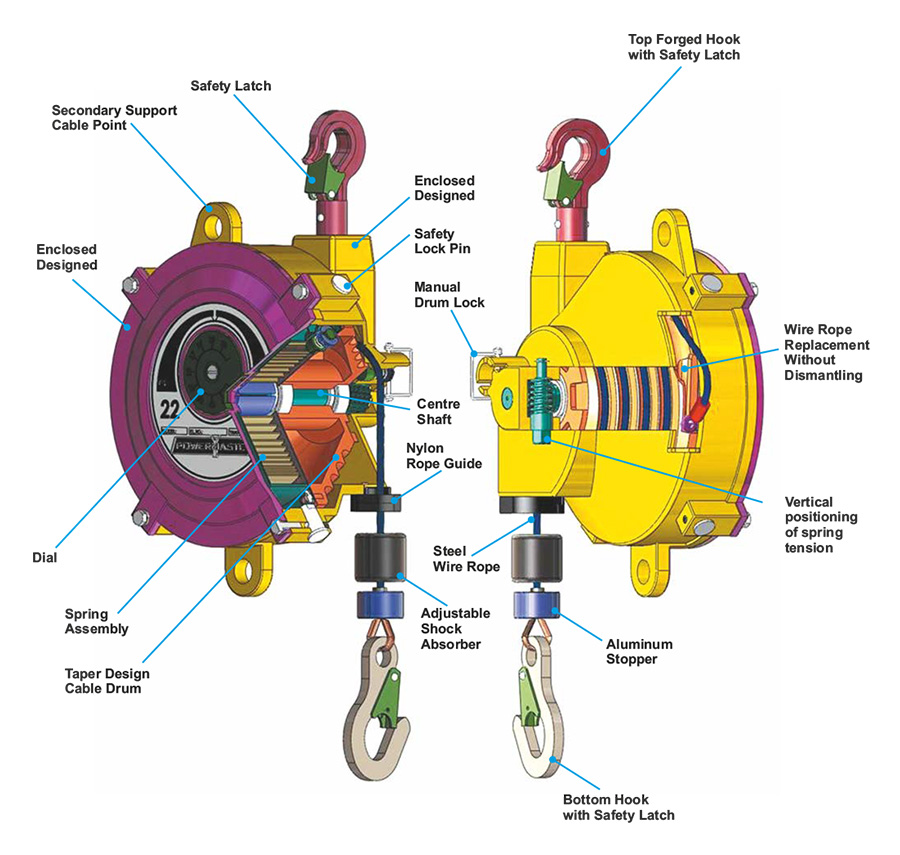

  • Closed body and cover: Prevents industrial accident by preventing ingress of fingers inside the assembly.
  • Body Liner: To prevent the wear of body by wire rope. Increases life of the balancer.
  • Vertical axis Spring adjustment: This will facilitate adjustment of spring tension from ground level.
  • Containerised Spring assembly: Concealed containers are easy in handling during maintenance and replacement of springs.
  • Wire rope replacement without dismantling: A slot on balancer facilitates removal and installation of wire rope without disassembly of balancer. This facility is not available for long range balancer.
  • Pressure die casting: Parts are manufactured through pressure die hence there is consistency in surface finish and total interchangeability of spares. Facilitates large batch production hence reduced delivery period.
  • Safety lock pin: Locks drum pulley in the event of spring failure and thus prevents the fall of costly equipment & injury to the operator from falling load.
  • Forged top hook: Permits 360 degree swivel of balancer.
