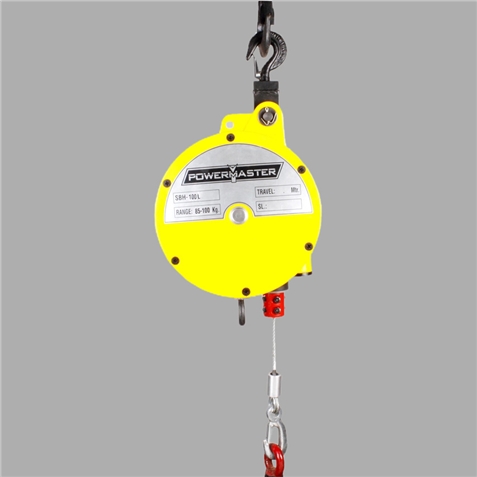

SBH Series

Heavy Weight Spring Balancers

New introduction to meet the long standing requirement of HEAVY WEIGHT balancers both in Standard range & Long range.

Capacity 187.3 lbs to 661.2 lbs 85.0 kg to 300.0 kg
Travel 4.92 ft to 9.84 ft 1.5 m to 3.0 m

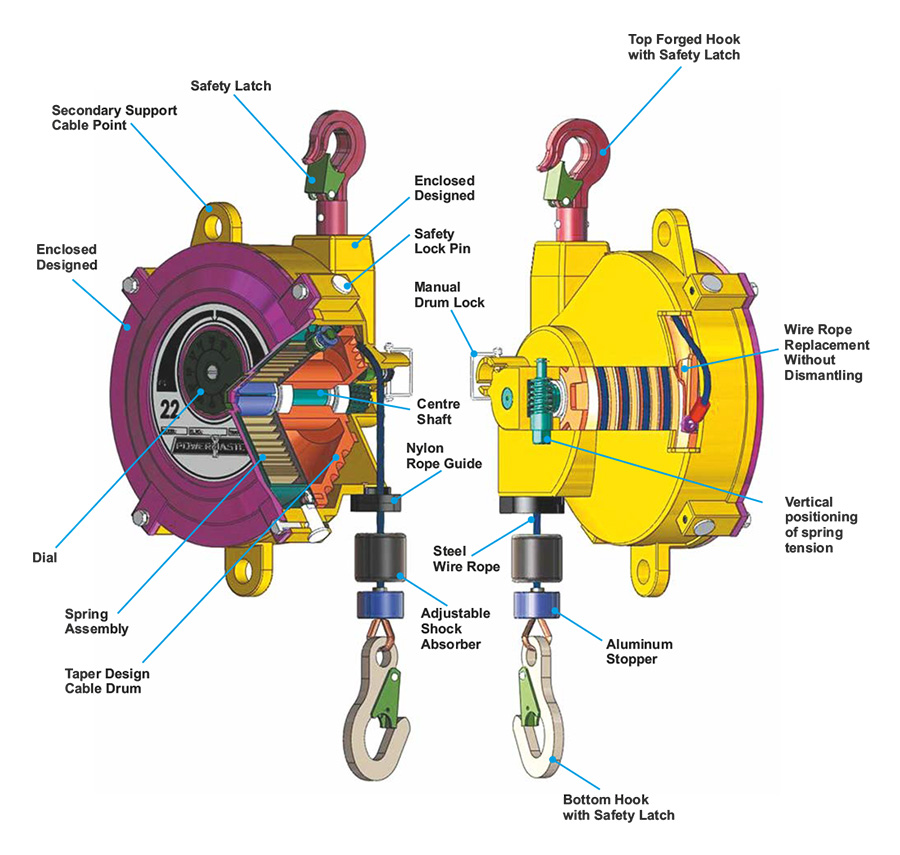

  • Closed body and cover: Prevents industrial accident by preventing ingress of fingers inside the assembly.
  • Body Liner: To prevent the wear of body by wire rope. Increases life of the balancer.
  • Vertical axis Spring adjustment: This will facilitate adjustment of spring tension from ground level.
  • Containerised Spring assembly: Concealed containers are easy in handling during maintenance and replacement of springs.
  • Wire rope replacement without dismantling: A slot on balancer facilitates removal and installation of wire rope without disassembly of balancer. This facility is not available for long range balancer.
  • Pressure die casting: Parts are manufactured through pressure die hence there is consistency in surface finish and total interchangeability of spares. Facilitates large batch production hence reduced delivery period.
  • Safety lock pin: Locks drum pulley in the event of spring failure and thus prevents the fall of costly equipment & injury to the operator from falling load.
  • Forged top hook: Permits 360 degree swivel of balancer.
View Safety Features
